Product Details
＋

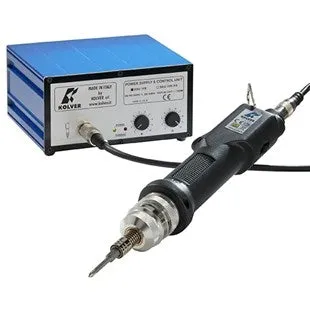

- The FAB12RE/FR is our best selling screwdriver due to its wide torque range and ergonomic ESD safe in-line body style.
- This tool is supplied in an ergonomic ESD safe in-line body style.
- The tools offer ease of use, have high accuracy, and durability.
- They are lightweight (about 1 lb), compact, powerful, and come standard with ESD-safe housing certified to SP method 2472 (Ericsson approved).
- The adjustable RPMs and slow-start options make it a versatile tool ideal for multiple applications.
- The torque is set externally: an adjusting nut controls output torque by changing the clutch spring compression. A reference scale will indicate the torque setting.
- The low voltage 30 VDC rare earth motor combines high performance and long life. Replacing the carbon brushes once a year is all you need for maintenance.
- The motor works in combination with a control unit. The electronic control circuit cuts the power supply to the motor in response to the clutch action, as soon as the pre-set torque has been reached.
- A Controller is required for this tool to operate (purchased separately). The EDU1FR is our most popular controller because of the RMP control it provides. The EDU1FR/SG offers the same functionality with the addition of an input for remote start and outputs for lever start (motor on) and clutch fired (motor stop). The EDU1CL/FR is the same shape and size but offers no RPM control (this is our lowest cost model). The EDU1FR/PLC offers screw counting and has IO available to control secondary operations.
- NOTE: The heavy-duty cables and connectors, developed for robotic applications, are made of antistatic dissipative material for a safe use in ESD environment.
- 8 ft controller connection cable
- Suspension bail
- Drive Type: 1/4” Hex
- Free Speed: 650-1000 RPM
- Torque Range: 1.8 to 10.6 in/lbs
- Style: Inline
- Clutch Type: Auto Shut-Off
- Trigger Type: Lever Start
