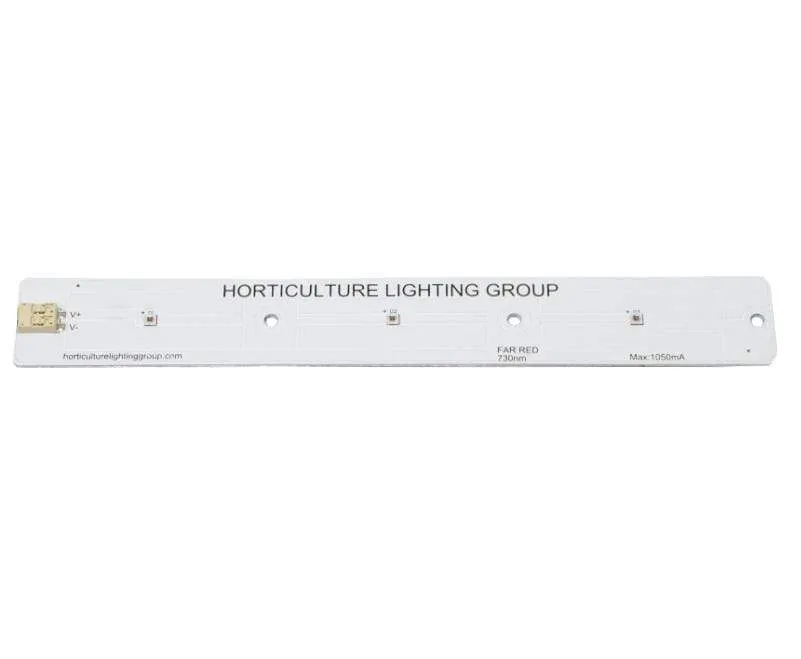

SPECIFICATIONS

Forward Voltage Vf = 6.7 VDC -7.0 VDC @ 1000mA
220 mm x 30mm
Peak Wavelength 730nm
Max Recommended Current 1000mA
Recommended Installation: Screw, Double side adhesive tape.

RECOMMENDED FAR RED LED MODULES FOR EVEN COVERAGE

Space in ft x ft	QB 3 Modules
2x2, 2x2.5, 3x3	1 or more in Parallel
4x4, 4x5, 5x5	2 in series
6x6	3 in series

RECOMMENDED USAGE

Flowering Initiator. Power on for 3 to 10 minutes during transition from Lights On (Photo Period) to Lights Off (Dark Period).

DRIVER OPTIONS (CONSTANT CURRENT LED DRIVER ONLY)

- One or more QB 3 in Parallel
- One or Two QB 3 in Series
- Two or Three QB 3 in Series
- Three or Four QB 3 in Series
- Three or Four QB 3 in Series

Meanwell are a great way of using standard 12v - 54V power supplies to power QB 3 strips. Standard 12V power supply can power 1 board with LDD. Standard 18V power supply can power 2 board in series on a LDD. Standard 24V power supply can power 3 board in series on a LDD. These step down DC-DC drivers are available in 300mA, 350mA, 500mA, 600mA, 700mA, 1000mA. LDD can convert 10 to 54VDC input into Constant Current to power for QB 3
