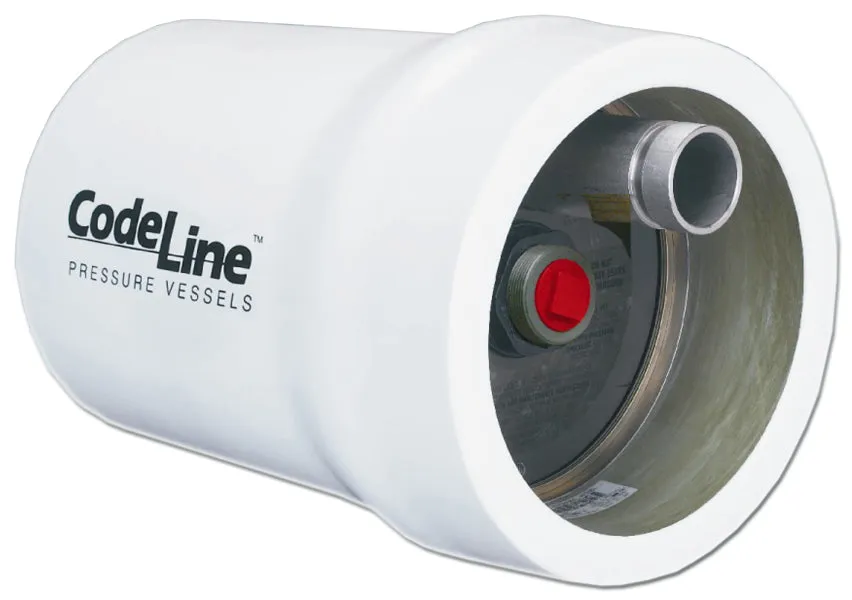

CodeLine 4" x 40" 300 PSI Membrane Housing
Codeline 40E30N-1 membrane housing accomodates 1) 4" x 40" membrane element. This vessel features end entry design and is used for commercial and industrial RO applications. Codeline vessels are made up of epoxy/ glass composite to meet the demands of long term and continuous use in RO processes.
This membrane housing is direct connection to standard AMI and FilmTec style 4x40 membranes (with ¾" male product water tubes) - with no adapters required.
|
|
|
|
| Codeline Model: |
40E30N-1 |
| For Membrane Style: |
FilmTec/AMI Style |
| Membrane Connection: |
Direct Connect 3/4" PWT |
| For Membrane Size: |
4" x 40" |
| Qty. of Membranes per Vessel: |
1 |
|
4.88"OD (Max) x 44"L |
| Pressure Rating: |
300 PSI (20 bar) |
| Qualification Pressure: |
1800 pSI (124 Bar) |
| Configuration: |
End Port |
| Max Temperature: |
120°F (49°C)
|
|
|
|
