Product Details
＋
Description

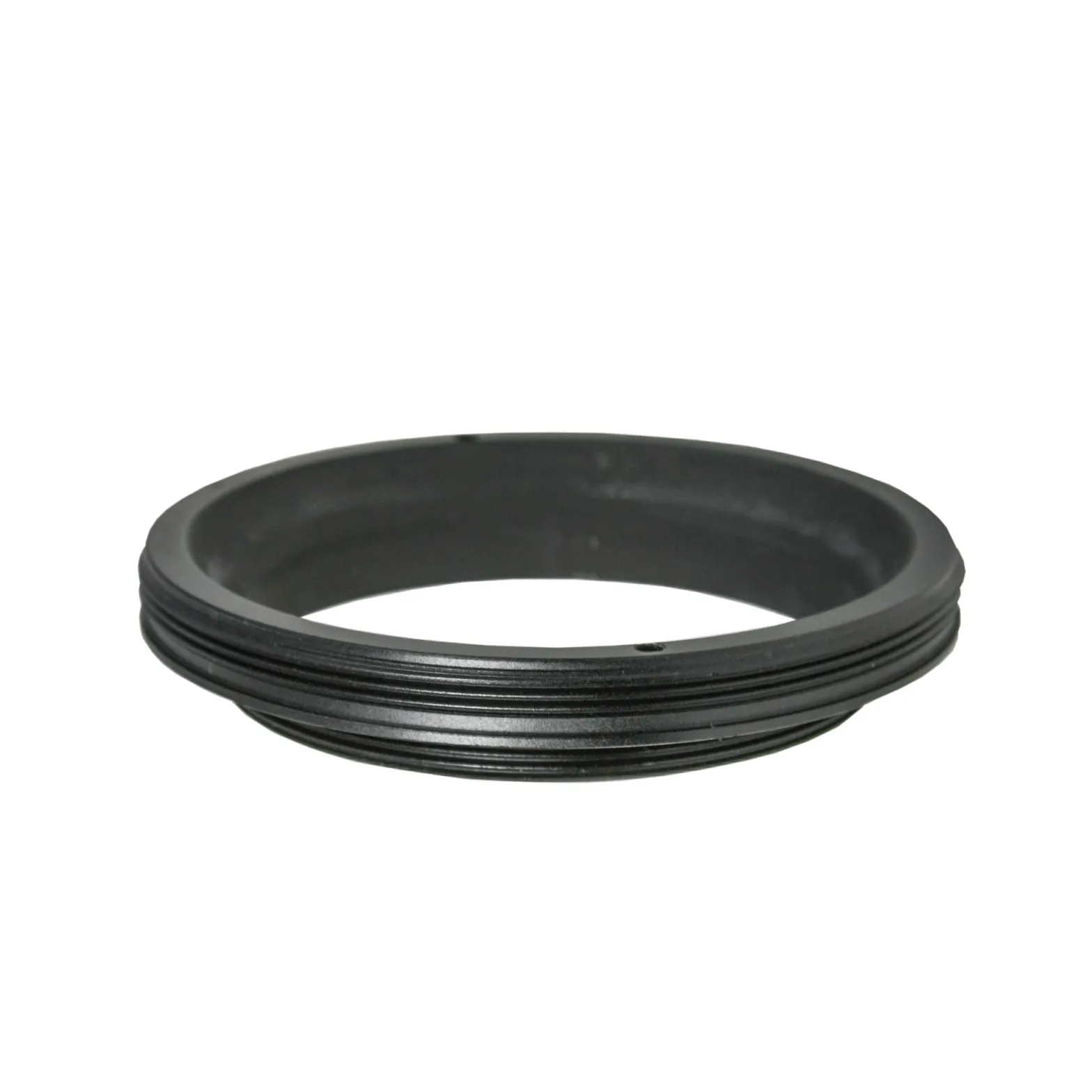

- Baader M55a / M68a (Zeiss) adapter for all Baader 2" mirror and prism star diagonals, for direct connection to the M68 Zeiss thread
- With this adapter you can convert your Baader 2" Diagonal on both sides to M68 thread connection. To do so, remove the 2" nosepiece or ClickLock® and the M55/2"/S58 ring from the housing of the star diagonal and screw in the M55/M68 Adaper instead.
- To remove the black 2 "SC / S58 threaded ring from the housing and expose the M55 thread, you will need the Adjustable pin type face wrench ø 2mm (#2450062)
- Suitable for the following 2" mirrors/prisms (already included in the delivery of Baader 2" ClickLock Diagonal Mirror M68 thread (Zeiss) (#2956100Z):
- Baader 2" ClickLock Diagonal Mirror (#2956100)
- Baader 2" BBHS ® Mirror Diagonal with 2" ClickLock Clamp (#2456115)
- Baader 2" BBHS ® Prism Star Diagonal Prism with 2" ClickLock Clamp (#2456117)
Specifications
| MANUFACTURER | Baader Planetarium |
|---|---|
| SKU (#) | 2956110 |
| EAN CODE | 4047825022523 |
| WEIGHT (NETTO) | 0.027 |
| OPTICAL LENGTH (MM) | 1 |
| INNER DIAMETER / CLEAR APERTURE (MM) | 50,8 (2") |
| OUTER DIAMETER | 68 |
| OUTER CONNECTION (LENS SIDED) | Thread, M68 x 1 |
| OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) | Thread, M55 |
| COMPATIBLE BRANDS | Baader Planetarium, Zeiss |
| TYPE OF ADAPTER | Expanding piece |
