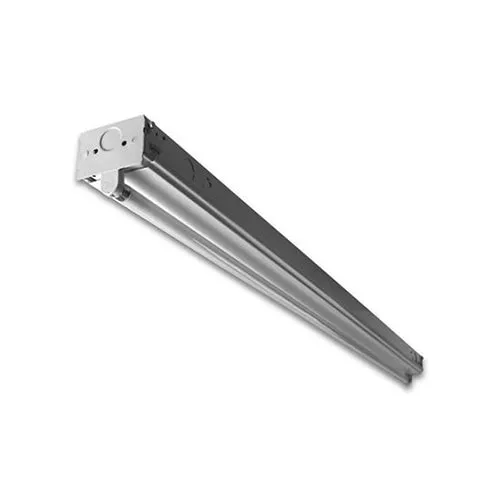

Advantage Environmental Lighting LPT5 Low Profile T5 Knockdown Strip Luminaire

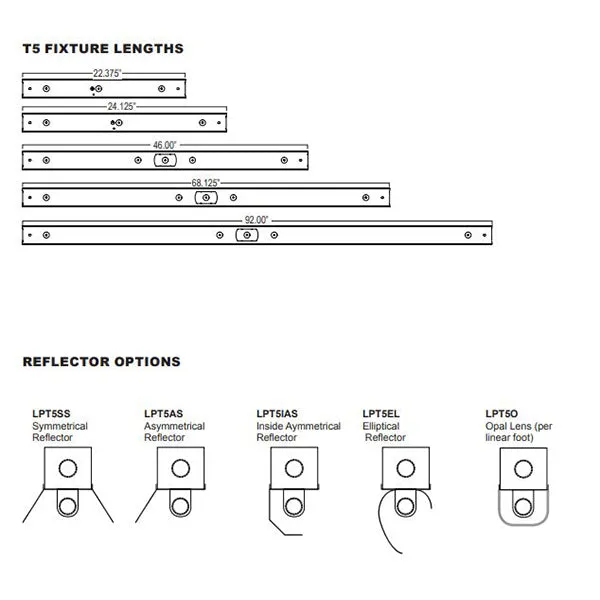

The LPT5 Series is a T5 Low-Profile Knockdown Fluorescent Strip available in 2’ thru 8’ body lengths. It was designed for surface or suspended mounting applications. Outdoor facilities, high rise garages, building exteriors, educational facilities, recreational facilities, and other intensive use environments are the perfect types of environments for the fixture of this nature.
APPLICATIONS
The LPT5 Series of Narrow Fluorescent Strips were designed to be high quality, energy efficient fluorescent fixtures for use in commercial applications, offices, government facilities, schools, and public areas.
OPTICAL SYSTEM
White polyester polymer finish with a high reflectivity. Multiple lamp configurations. Pre-painted 93% high reflective finish for maximum light output.
MOUNTING
Surface or pendant mount, individually or in continuous rows. Sufficient knockouts are provided. Double KO access on 4 ft and longer to facilitate wiring of units for multiple ballast configurations.
CONSTRUCTION
The fixture is constructed of a heavy gauge cold rolled steel body.
ELECTRICAL SYSTEM
Standard 120-277V electronic instant start ballasts for T8 lamping, ≤10% THD. Standard 120-277V electronic program start ballasts for T5 lamping, ≤10% THD. 50-60 Hz operation. Sound rated A. Thermally protected. Automatic resetting Class P. High Power Factor. Non PCB.
LISTINGS
UL and cUL Listed. Damp location rated.
WARRANTY
1-Year Limited Warranty..
